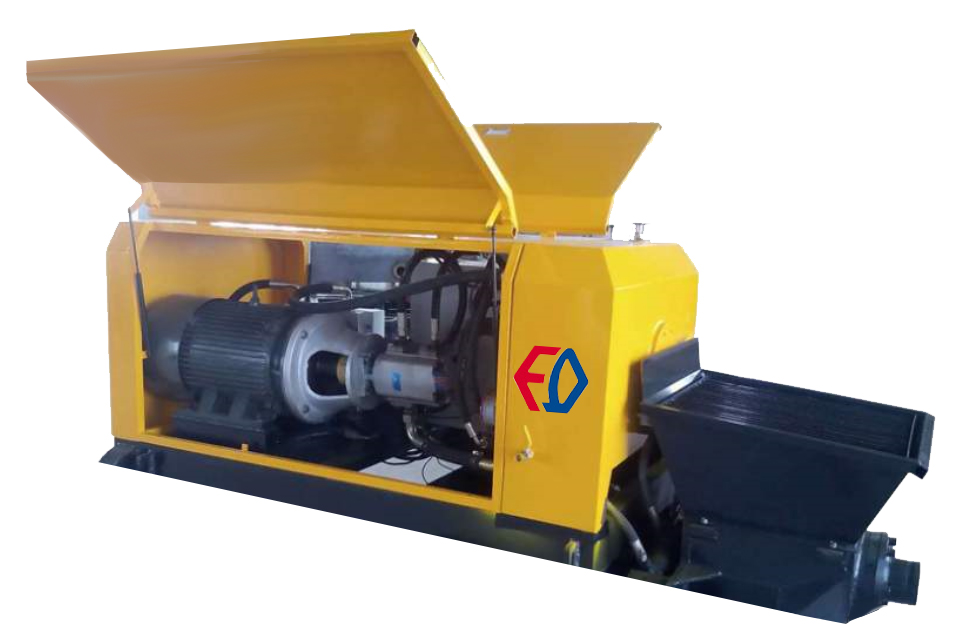

Cuttings Transfer Pump
In order to move the drill cuttings which generated by the solids control equipment more convinient ,FD Petrol cuttings transfer pumps were developed to achieve short distance transfer.The material can be transfered by our cuttings pump not limited to the drill waste ,cuttings,slurry ,mud,tank bottom waste etc.The FD Petrol cuttings transfer pump is designed to move slurry with solids content as high as 70-80%,it is the ideal application for drill cuttings .Watch FD Petrol cuttings pump working video
| Model | Capacity | Pressure | Power | Distance | Dimension | Weight |
|---|---|---|---|---|---|---|
| FDTS15-22 | 15(m³/h) | 6 Mpa | 15kw | 100m | 2.6*1.1*1.3m | 1700KG |
| FDTS-20-30 | 20(m³/h) | 8 Mpa | 20kw | 120m | 3.9*1.1*1.3m | 1900KG |
| FDTS-30-45 | 30(m³/h) | 10 Mpa | 30kw | 140m | 4.5*1.5*1.8m | 3000KG |
| FDTS-40-55 | 40(m³/h) | 10 Mpa | 40kw | 150m | 4.5*1.5*1.8m | 3200KG |
FD Cuttings Transfer Pump Features
1.Plunger pump with hydraulic oil lubrication system
2.Safer electrical control system avoid operation with load
3.High rated working pressure
4.Compact design with bigger transfer capcity and long distance as long as 150m
